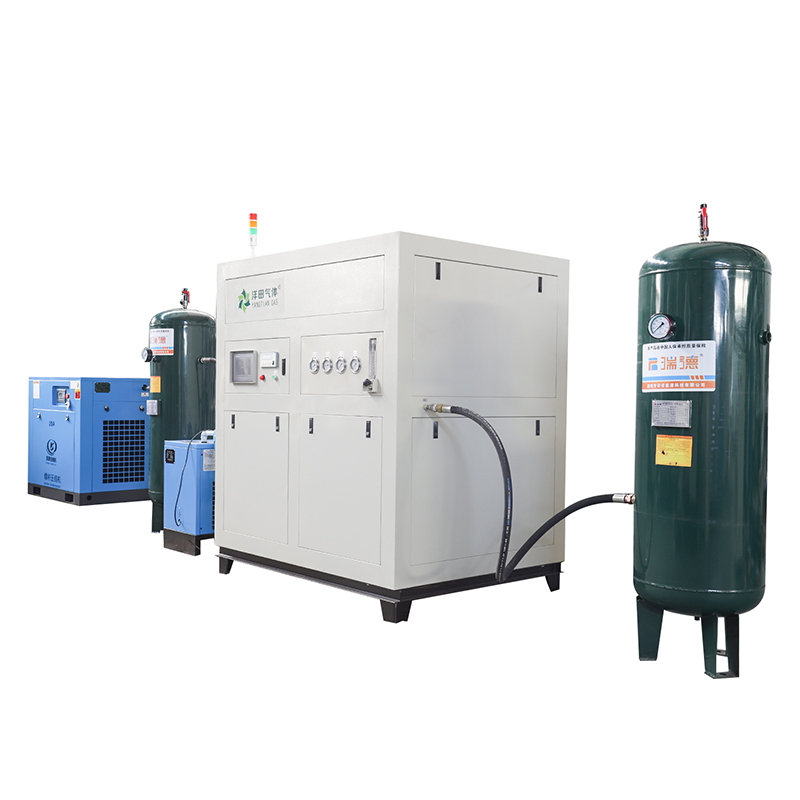

A Pressure Swing Adsorption (PSA) Nitrogen Generator Plant is a system designed to produce nitrogen gas by separating it from the surrounding air using the PSA process. Nitrogen generators are widely used in various industrial applications where a constant and reliable supply of nitrogen gas is required.

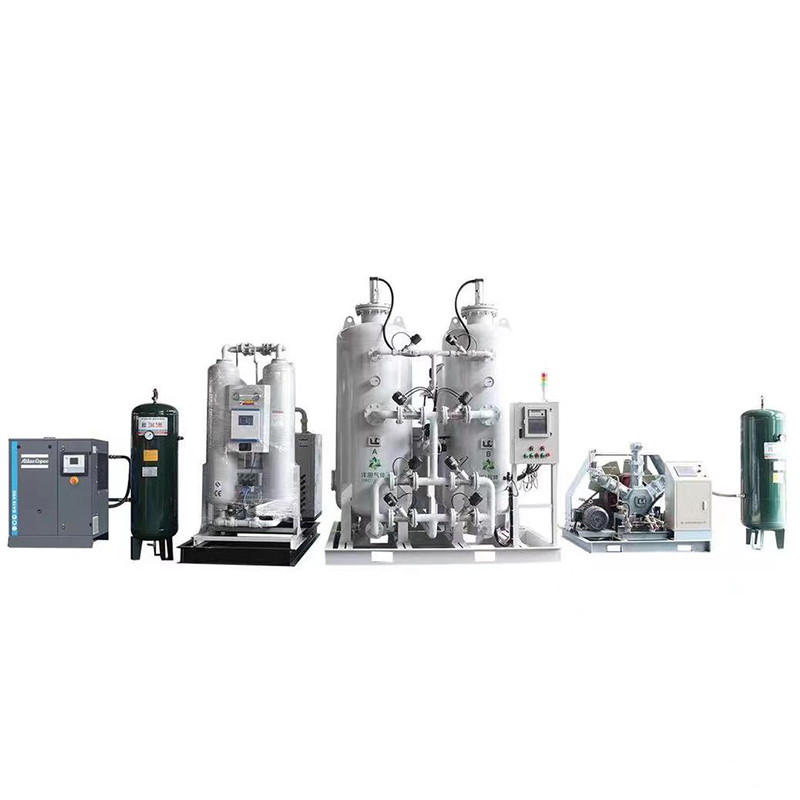

Air Compressor:The process starts with an air compressor that draws in ambient air and compresses it to a certain pressure.
Air Treatment:The compressed air usually contains impurities like moisture, oil, and dust. Therefore, it undergoes pre-treatment to remove these contaminants, ensuring the purity of the nitrogen produced.

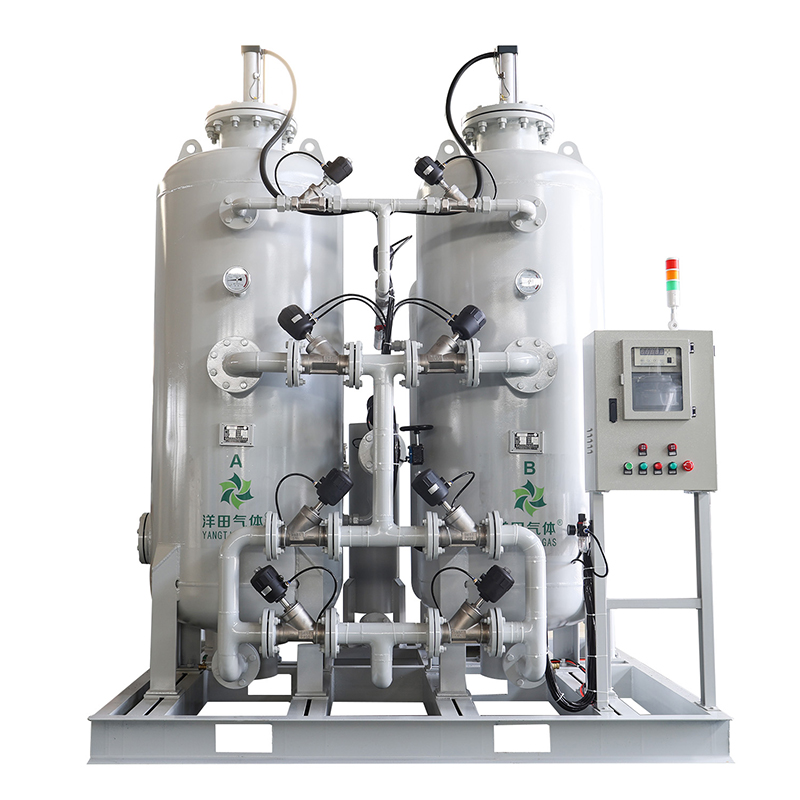

PSA Adsorption Columns:The heart of the nitrogen generation process is the PSA adsorption columns. These columns contain a material (typically a molecular sieve) that selectively adsorbs oxygen, moisture, and other impurities, allowing nitrogen to pass through.
Adsorption and Desorption Cycles:The PSA process consists of two main cycles – adsorption and desorption. During the adsorption cycle, the compressed air is directed into one column while the nitrogen is collected from the other. The molecular sieve adsorbs oxygen and other impurities, allowing al high purity nitrogen to flow through.
In the desorption cycle, the pressure in the adsorption column is reduced, and any adsorbed gases are released. This column is then ready for the next adsorption cycle.
Nitrogen Storage and Distribution:The purified nitrogen is collected and stored in a buffer tank. From there, it can be distributed to various points of use within the industrial facility through a network of pipelines.
Control System:The entire process is controlled by a sophisticated control system that monitors variables such as pressure, temperature, and flow rates. This ensures performance and allows for adjustments based on the specific requirements of the application.
The main advantage of PSA nitrogen generators is their ability to produce nitrogen on-site, eliminating the need for costly nitrogen cylinders and transportation. They are cost-effective and can provide a continuous and reliable source of high-purity nitrogen for various industrial processes such as food packaging, electronics manufacturing, metal fabrication, and more. The size and capacity of the PSA nitrogen generator depend on the specific needs and volume requirements of the application.
